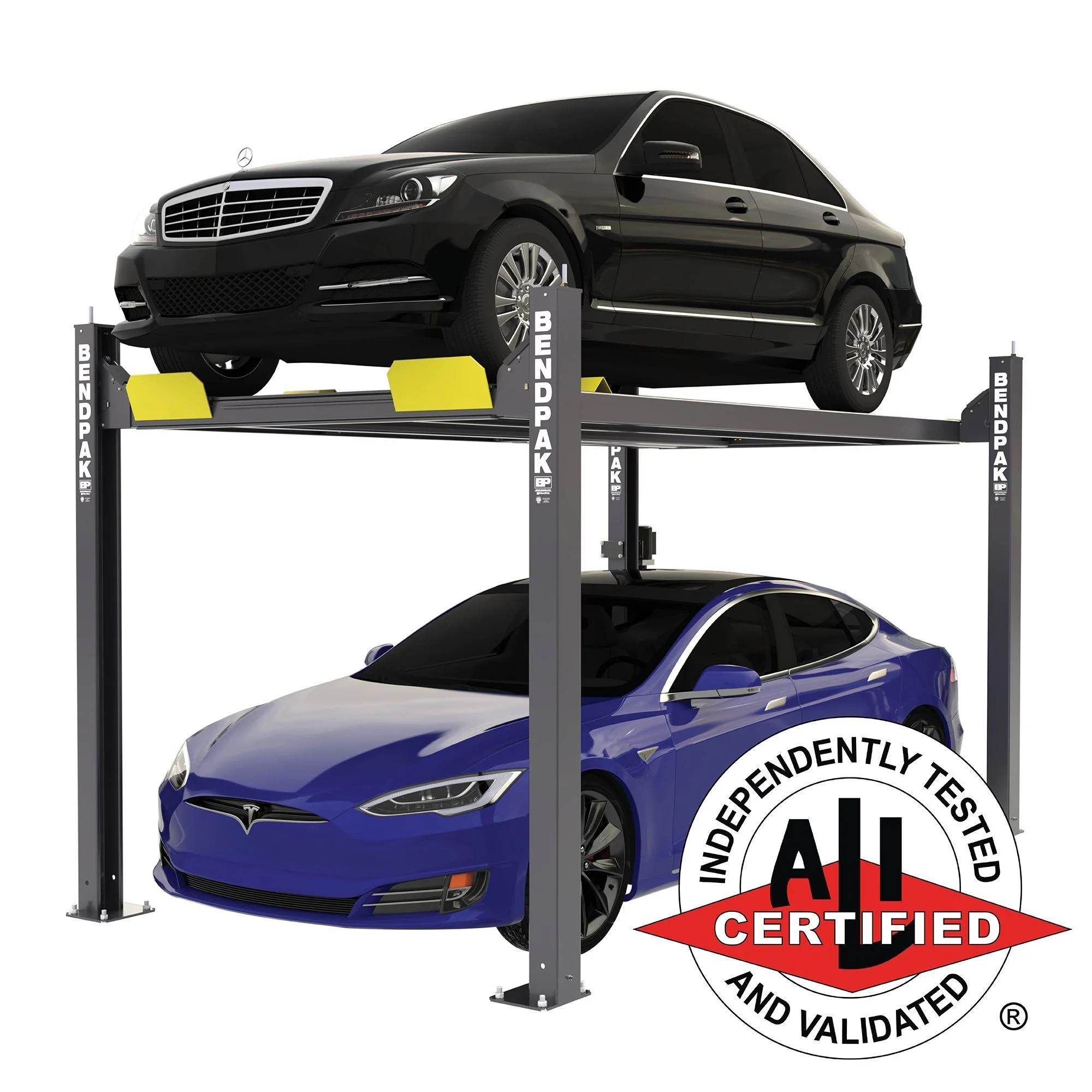

HD-7P 7,000-lb. Capacity / Narrow Car Lift / High Rise
$ 6,265
$ 6,595
A Versatile and Compact 7,000-lb. Parking Lift

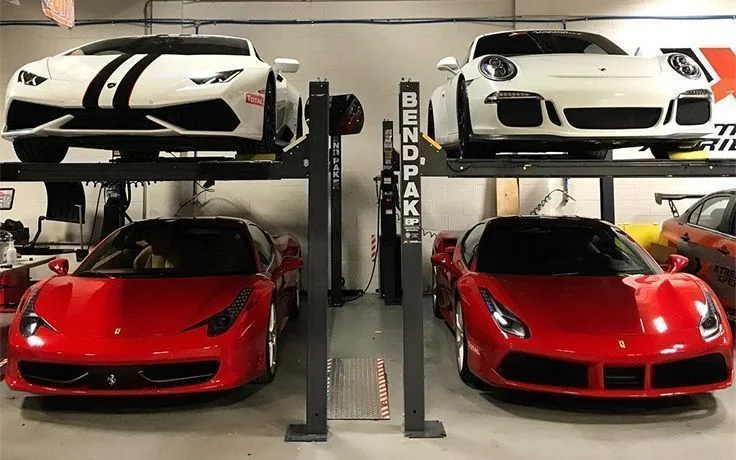

A parking lift is one of the best ways to save space. Homeowners love the extra room their lifts offer, and commercial parking garages know that enough parking lifts can effectively double their garage space and their bottom lines. The only way to add parking spaces, other than a car lift, is to expand the physical boundaries of your property. Our lifts are made to outlast whatever vehicles you store on them. They require very little maintenance and maintain a sleek, professional appearance in any setting.
The HD-7 parking lift components are all internally routed for both safety and improved aesthetics, making it a smart choice for professionals and homeowners alike.

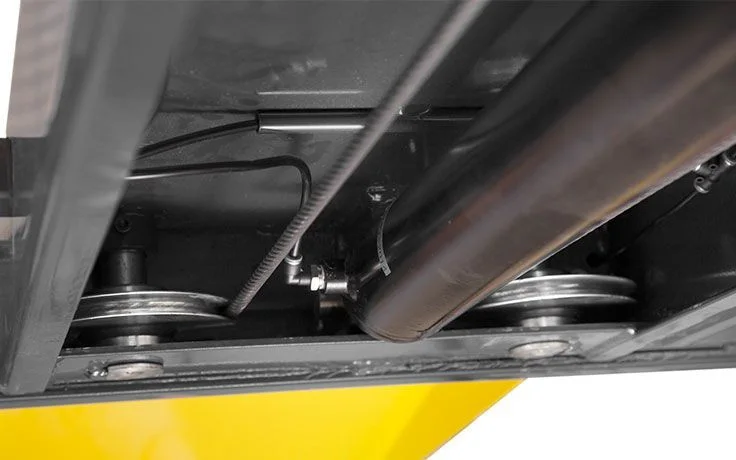

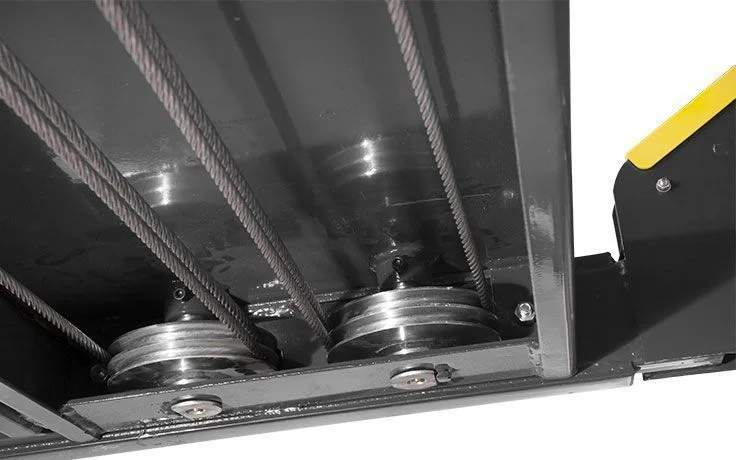

Dual-Hub Cable Sheaves
By doubling the cable-run surface area on our cable sheaves, we’ve created a safer, longer-lasting product for your shop or garage. The additional engineering ensures improved durability and performance.
Multi-Level Locking Positions
Four safety locks securely and automatically engage at multiple lock levels as the parking lift rises. A pneumatic safety release disengages the locks simultaneously when the structure descends.
Heavy-Duty Aircraft Cable
Each aircraft-quality stainless steel cable is rated for 14,400 lbs. and fully enclosed within the lift columns. Combined cable strength exceeds 822% of the lift’s rated capacity, ensuring maximum safety and reliability.
Electric-Hydraulic Power System
BendPak’s integrated electric-hydraulic power systems feature easy-to-reach controls and require zero maintenance from the user.
Large Base Plates
Strong 10" x 12" base plates provide a stable and secure foundation for your parking lift.
Caster Kit
An optional four-piece caster kit allows the lift to be moved easily, with or without a vehicle on the structure, providing maximum flexibility.
Integrated Design
Cables, airlines, safety latches, and sheaves are enclosed within the lift columns for added protection against weather, chemicals, and accidents, while maintaining a clean and professional appearance.

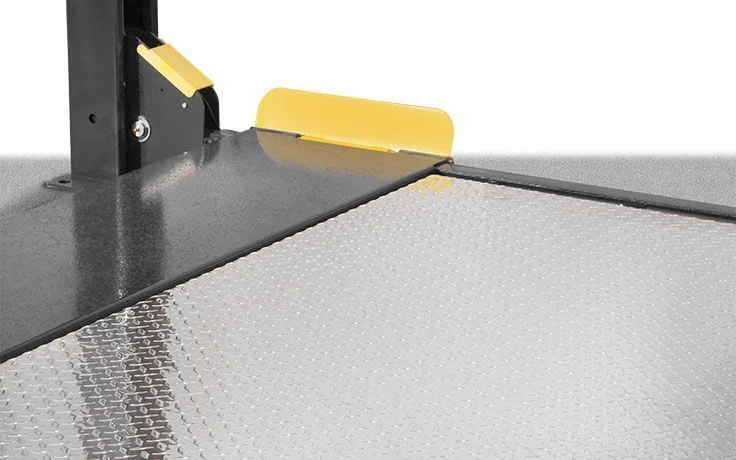

Low-Deck Runways
Low-profile 4-1/2" runways accommodate low-bodied sports cars, race cars, and most vehicles weighing under 7,000 lbs.
Longer Approach Ramps
Extended ramps reduce the risk of undercarriage damage and make loading vehicles safer and easier.

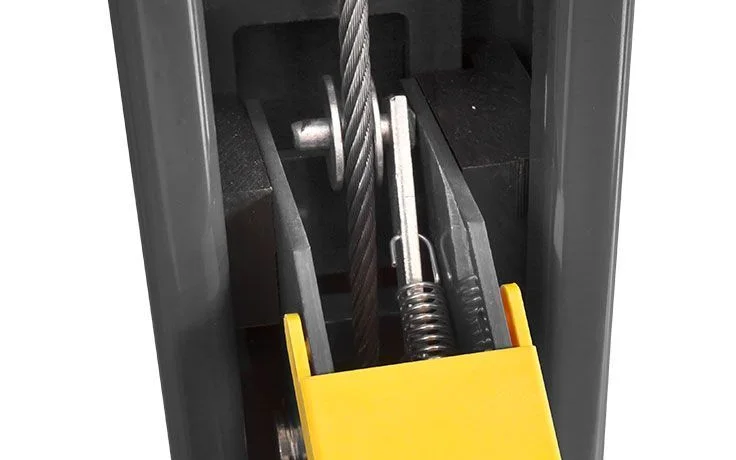

Automatic Safety Locks
Spring-loaded safety locks automatically engage as the lift rises and release simultaneously with the push of a button. A secondary lock system acts as a slack-cable device for additional protection.
Secondary Slack-Cable Locks
Four safety locks release smoothly for controlled descent. If slack is detected in the cables, a secondary device automatically engages to ensure safe operation at all times.

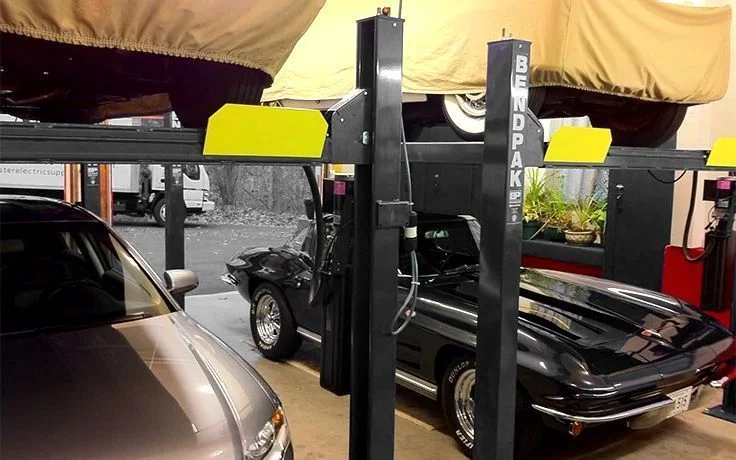

Choose Wide or Narrow
Wide and narrow configurations provide flexibility for different garage sizes. Multiple units can be placed side-by-side to increase parking capacity without requiring significant floor space.
