Name: Atlas BP12000X 12,000 lb Baseplate 2 Post Lift
Price: 2499 USD

The Atlas BP12000X Commercial Grade Lift

The Atlas® BP12000X is a commercial grade heavy duty 12,000 LB. capacity 2 post base plate above ground lift. This above ground lift has over sized columns, symmetric three stage arms, and single point lock release. This lift is perfect for those commercial garages that want to lift heavier vehicles but have limited ceiling height. The Atlas® BP12000X can be installed at two different width settings to accommodate wider trucks or trailers and to facilitate “driving between” the lift columns.

Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53' truck.

Features

12,000 lb. Capacity
Heavy Duty, Commercial Grade
Baseplate, Open-Top Style Lift
Overall Height: 122 1/2″ (10′ 2 1/2″)
Adjustable Width
3-Stage Symmetric Arms
Automatic Arm Restraints
Single-Point Lock Release
Rubber Guards on Carriages
Dual Hydraulic Chain-Over Cylinders
Powder Coat Finish
Free 12 piece Truck Adapter Set
Mounting Hardware Included
Shipping Weight: 2,130 lbs.
5 yr Structural – 2 yr Hydraulic Warranty – Parts Only

Atlas® ATTD-BP12000X Specifications

Capacity	12,000 LB.

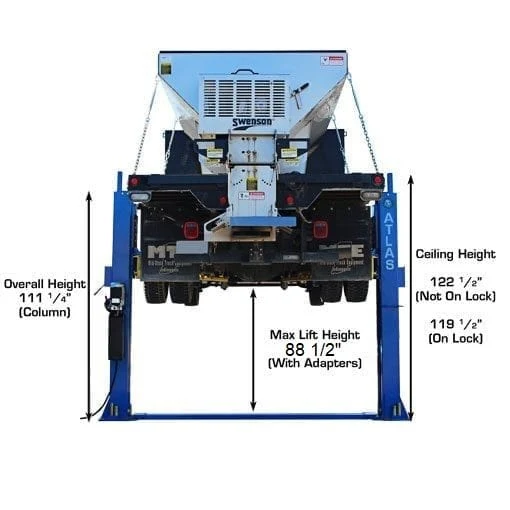

Overall Height	122 1/2" (10’ 2 1/2")

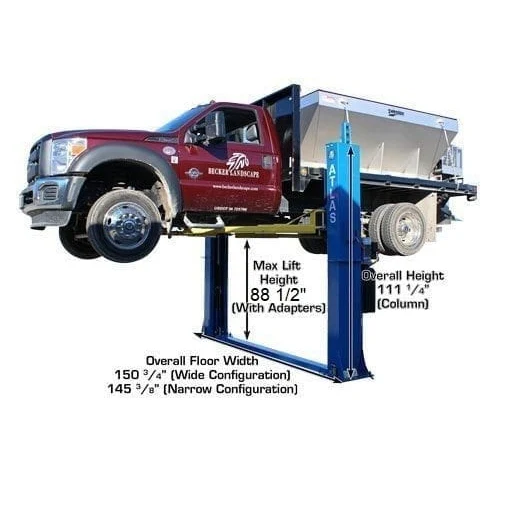

Overall Floor Width	149 3/8" (12’ 5 3/8") or 154 1/2” (12’ 10 1/2”)

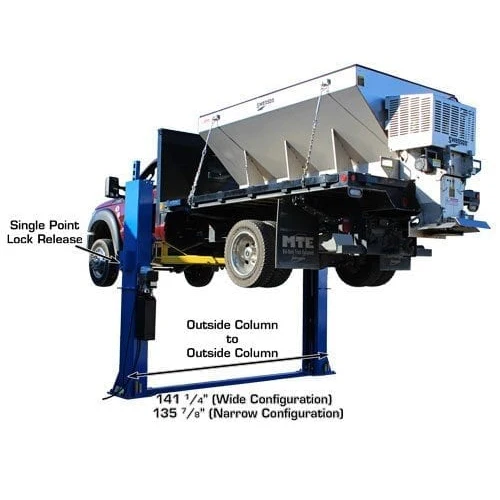

Outside Column to Outside Column	135 7/8" (11’ 3 7/8") or 141 1/4" (11’ 9 1/4”)
Maximum Lift Height (Without Adapters)	77 1/2"

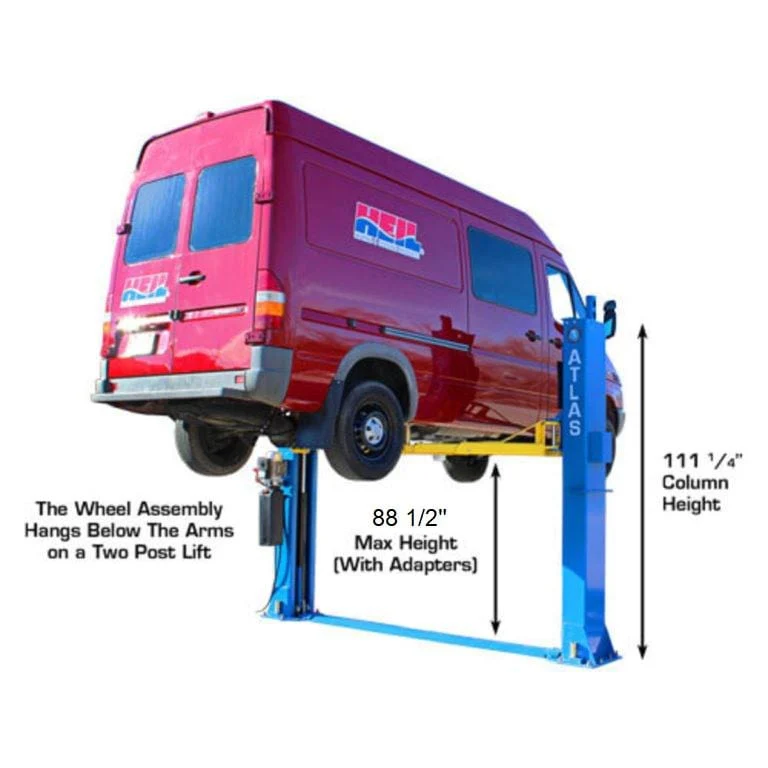

Maximum Lift Height (With Adapters)	88 1/2"
Minimum Arm Height	4"

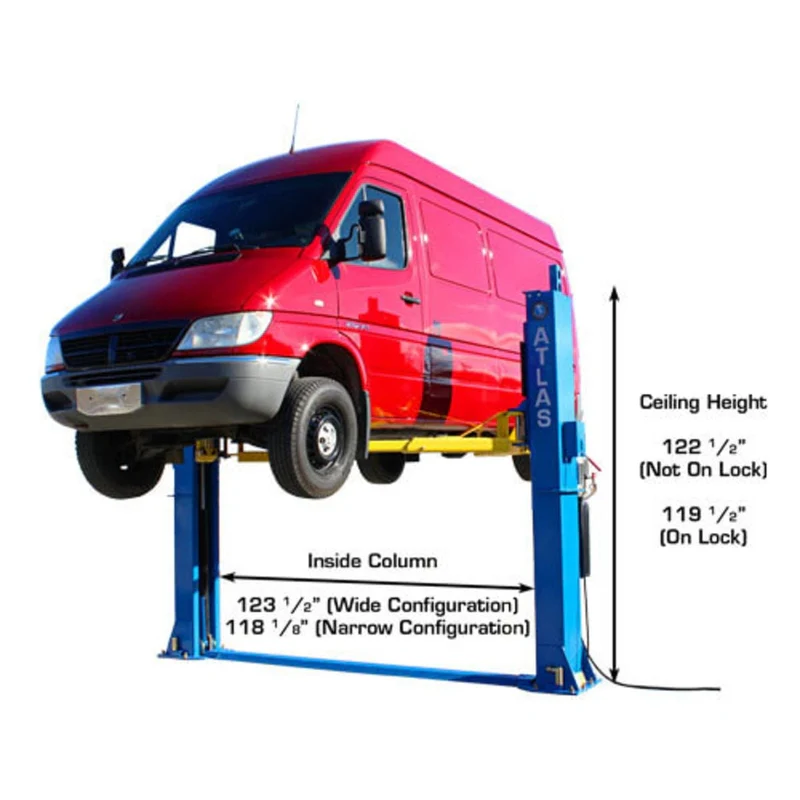

Inside Column	118 1/8” (9’ 10 1/8”) or 123 1/2" (10’ 3 1/2")

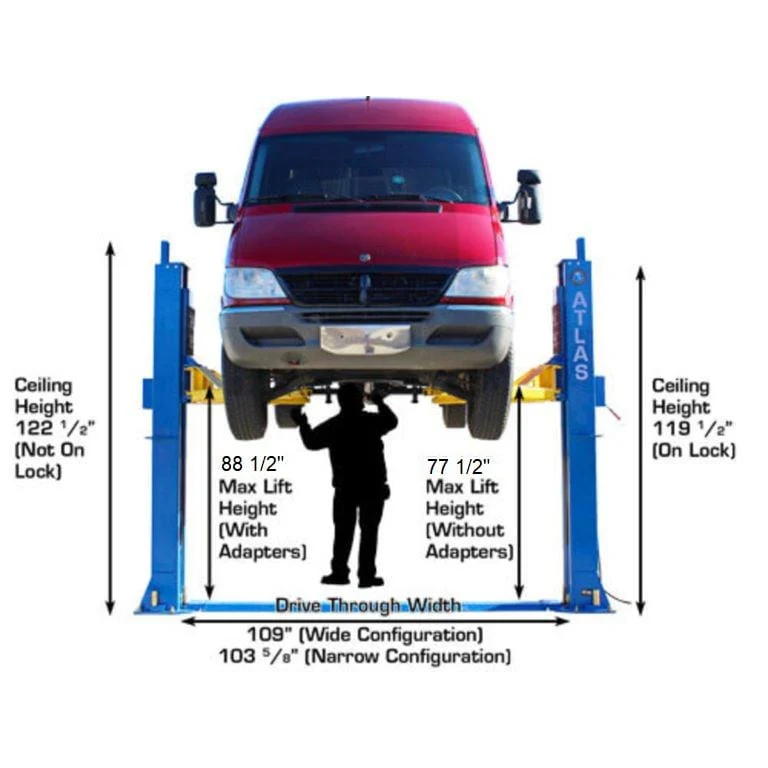

Drive Thru	103 5/8” (8’ 7 5/8”) or 109” (9’ 1”)
Column Size	8 3/4" x 14"
Column Thickness of Steel	6mm

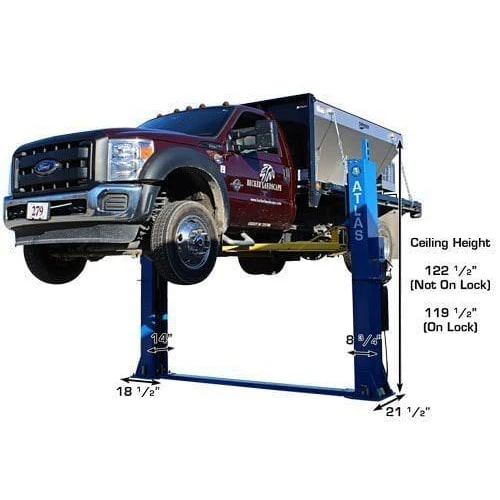

Base Of Lift	18 1/2" x 21 1/2"
Motor/Electrical Requirement	220 volt single (1) phase. A 30 amp breaker is recommended
Oil Requirement	3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight	2,130 LBS.
Adapter Heights	4 Each 2”, 3”, 6”
Arm Hole/Adapter Peg Size	1.5”
