Atlas 414 14,000 lb Commercial 4-Post Lift
$ 7,456
$ 7,849
Atlas 14,000 Lb. Capacity Commercial Lift
The Atlas 414 14,000 pound capacity heavy duty four post lift is designed and built to commercial grade standards and will provide many years of service. Our Atlas lifts offer many exclusive features not found on many other competitors lifts.
The Atlas 414 incorporates many structural and cosmetic features that are found on lifts costing thousands of dollars more money. The Atlas 414 is tested to ensure that this lift system will perform flawlessly at its rated capacity. The Atlas 414 has been manufactured to the same exacting specifications for many years.

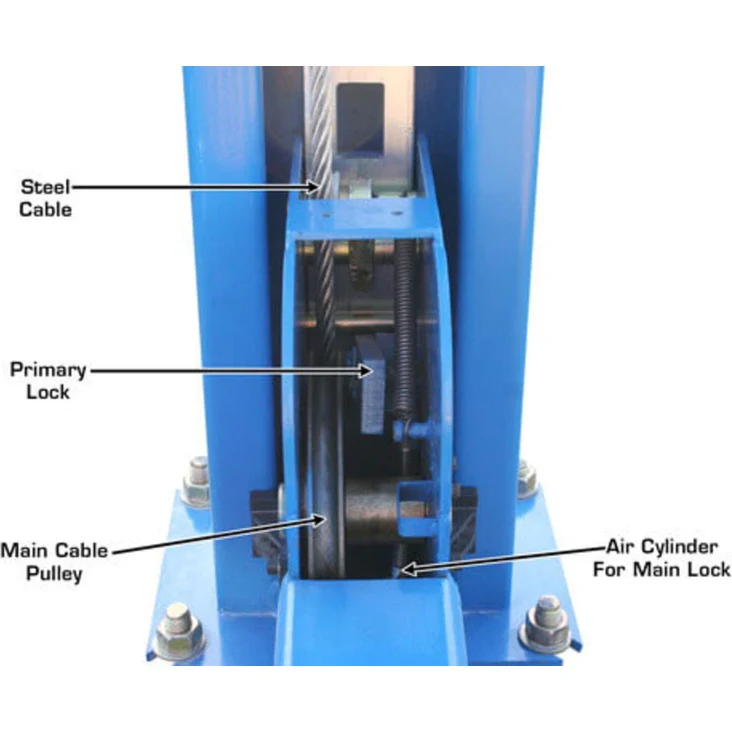

The Atlas 414 uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an old style chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to level properly and the exposed hydraulic cylinder is responsible for numerous door dings.
Finally, the Atlas 414 features tracks between the runways to allow the use of a rolling bridge jack (such as the Atlas RJ8000BK) on the lift. Rolling jacks sold separately.
Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53' truck.
Features
14,000 lb. Capacity
Heavy Duty, Commercial Grade
Extra Tall, Extra Wide & Extra Long
Diamond Plated Runways
Air Operated Single Point Lock Release (External Air Supply Required)

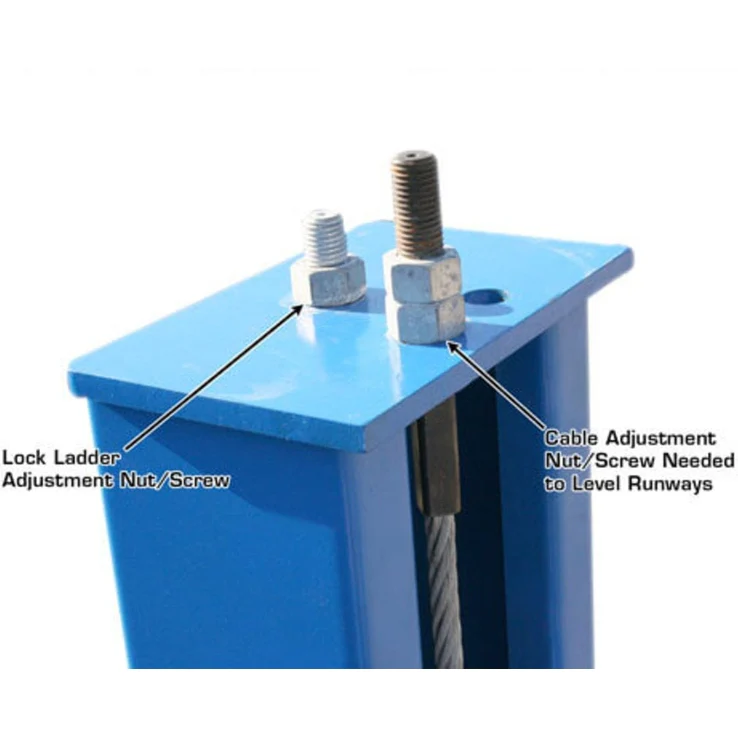

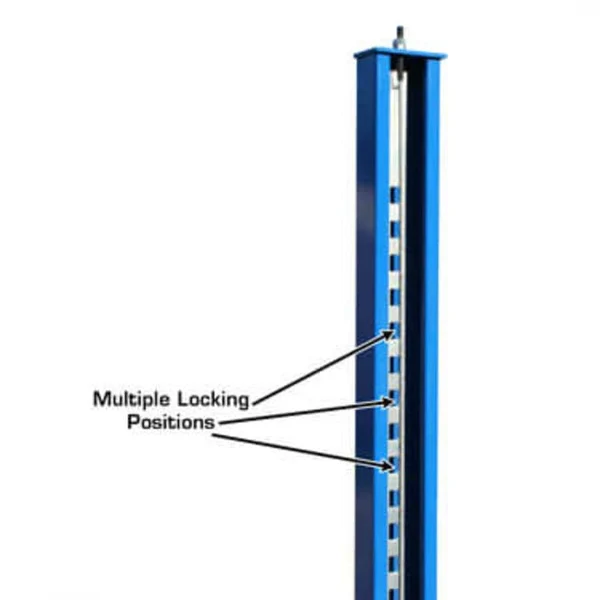

Lock Ladder Design
Double Lock Safety System
Powder Coat Finish

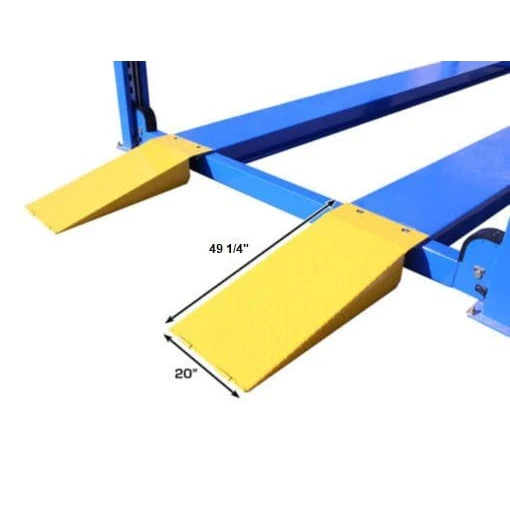

Steel Approach Ramps Included
Additional Drive off Ramps Available (Sold Separately)
Runway Extensions Available (Sold Separately)
Mounting Hardware Included
220volt/1phase Electric Operation (Requires a 30amp Breaker)
Shipping Weight: 3,100 lbs.
5 yr Structural 2 yr Hydraulic Warranty Parts Only
Atlas ATTD-414 Specifications
| Capacity | 14,000 lb. | |
| Lifting Height | 80" (6' 8") | |

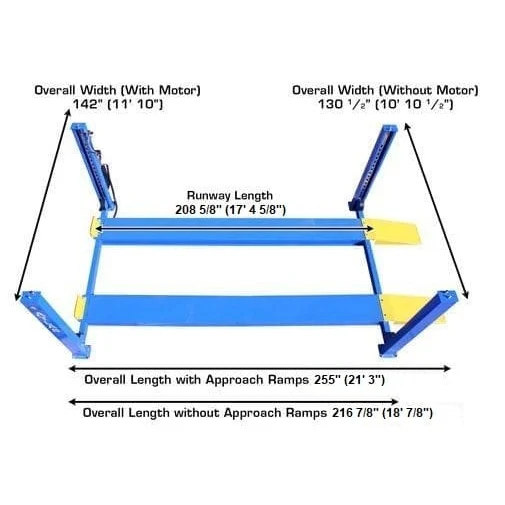

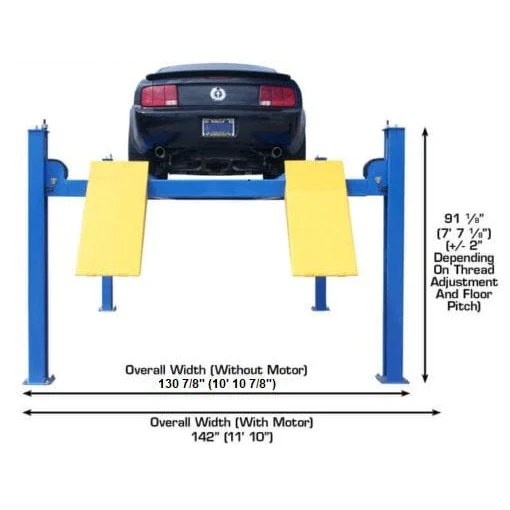

| Overall Width Of Columns (Without Motor) | 130 7/8" (10' 10 7/8") | |

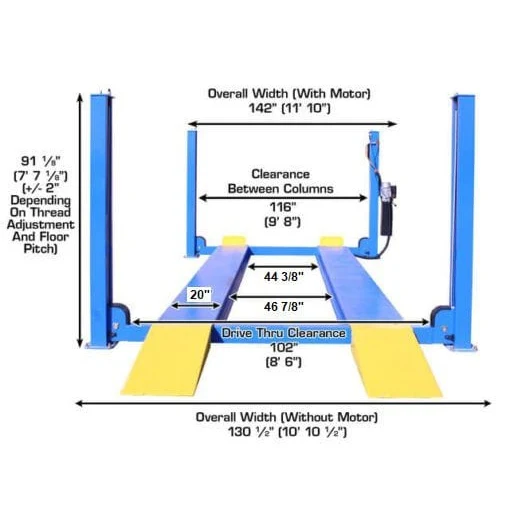

| Overall Width Of Columns (With Motor) | 138 7/8" (11' 6 7/8") | |
| Overall Length With Approach Ramp | 255" (21' 3") | |
| Length Between Columns | 197 1/4" (16' 5 1/4") | |
| Runway Length | 208 5/8" (17' 4 5/8") | |
| Runway Width | 20" | |
| Thickness Of Runway | 8 3/4" | |

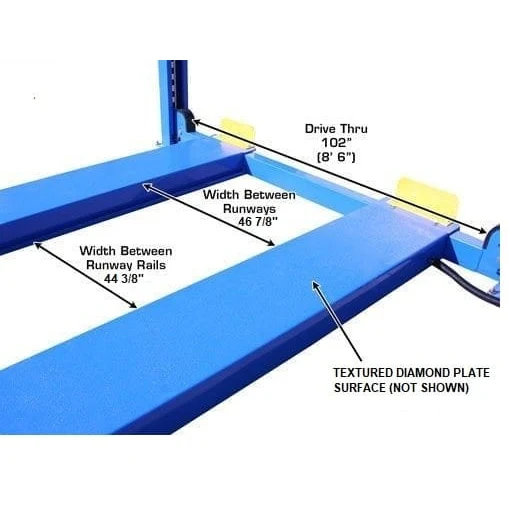

| Width Between Runways | 46 7/8" (w/ Rail 44 3/8") | |
| Outside Runway To Outside Runway | 86 7/8" (7' 2 7/8") | |

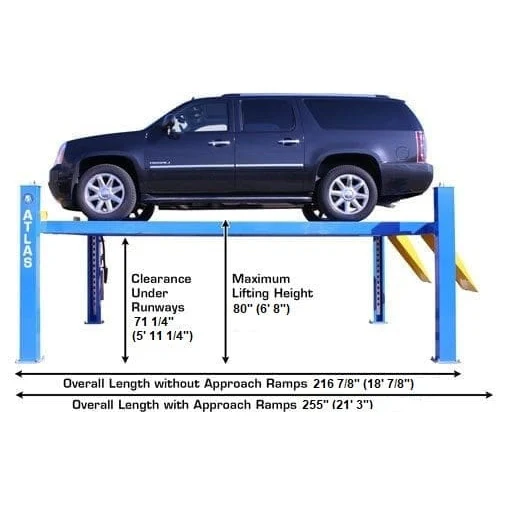

| Clearance Under Runways | 71 1/4" (5' 11 1/4") | |

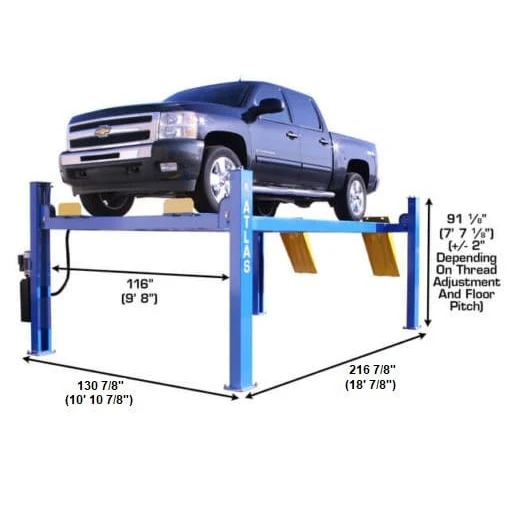

| Clearance Between Columns | 116" (9' 8") | |
| Height Of Columns | 91 1/8" (7' 7 1/8") | |
| Maximum Wheel Base | 197" (16' 5") | |
| Drive Thru | 102 1/8" (8' 6 1/8") | |
| Air Requirement | 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED) | |
| Motor/Electrical Requirement | 220 volt single (1) phase. A 30 amp breaker is recommended | |
| Oil Requirement | 3-5 Gallons AW32/AW46 (NOT INCLUDED) | |
| Shipping Weight | 3,100 LBS. | |
| Requires a minimum of 6" of concrete with a 3000 psi. rating | ||
